| Brand Name : | RESKY |
| Model Number : | LP602560 |
| Certification : | CE, RoHS, MSDS, Un38.3, IEC62133,ect |
| Price : | Negotiable |
| Payment Terms : | Western Union,T/T |
| Supply Ability : | 100000PCS/Day |
| Delivery Time : | 7-10workdays |
Product Description
Lithium Ion Polymer Battery 602560 3.7v 4.2v 1000mAh 3.7wh
Rechargeable Lithium Ion Batteries
| NO. | Items | Specifications |
| 1 | batteries | 3.7v 1000mah lipo battery |
| 2 | Charge voltage | 4.2V |
| 3 | Nominal voltage | 3.7V |
| 4 | Nominal capacity | 1000mAh 0.2C Discharge |
| 5 | Charge current | Standard Charging:0.2C Rapid charge: 1.0C |
| 6 | Standard Charging method | 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C |
| 7 | Charging time | Standard Charging:2.75hours(Ref. )Rapid charge: 2hours(Ref.) |
| 8 | Max.charge current | 0.5C |
| 9 | Max.discharge current | 1.0C |
| 10 | Discharge cut-off voltage | 2.5V0.25V(0.2C) |
| 11 | Operating temperature | Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C |
| 12 | Storage temperature | -10°C~ +45 °C |
| 13 | Dimension | Length:60±0.5mm (not including tabs) Width:25±0.5mm Thickness:6±0.2mm |
| 14 | Drop Test | The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage |
| 15 | cycle time | ≥800times |
Why we choose Li(NiCoMn)O₂ instead of LiMn₂O₄ polymer batteries?
Safety Performance and Application Advantages:
High Energy Density:
This battery utilizes ternary lithium material, boasting
significantly higher energy density than traditional lead-acid
batteries. While maintaining a 1000mAh capacity, it is more compact
and suitable for small devices such as Bluetooth headsets and smart
bracelets.
Long Cycle Life:
Ternary lithium polymer batteries support over 500 charge and
discharge cycles (some high-quality products can reach 1000
cycles), far exceeding the 300-500 cycle life of ordinary lithium
batteries, making them ideal for devices subject to frequent use.
Excellent Safety Performance:
The polymer structure is more stable than traditional lithium
batteries. A dedicated management chip controls the current during
charging, effectively preventing overcharge and over-discharge.
This reduces heat generation during use and enhances safety.
Applications:
This battery is widely used in products requiring high size and
stability, such as Bluetooth devices, tire pressure monitoring
systems, and electronic scales. It is particularly suitable for
devices requiring continuous operation (for example, electronic
scales can last for months on a single charge).

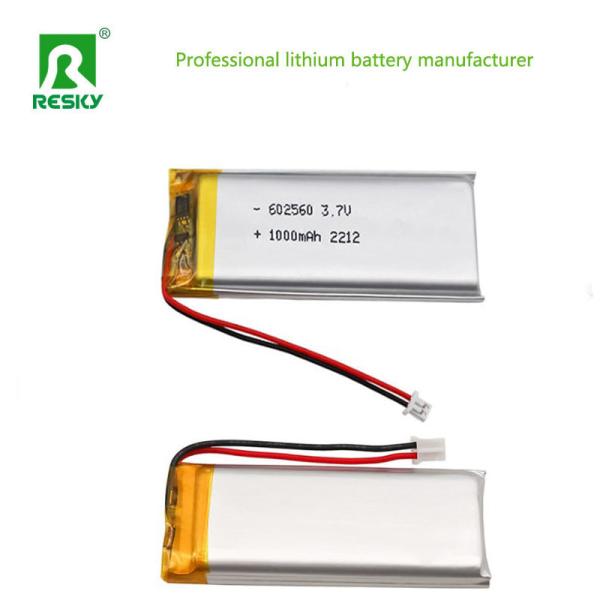

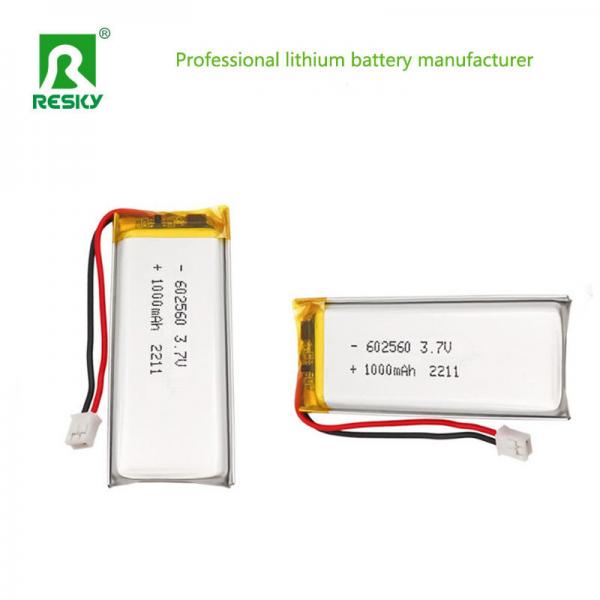

Product Pictures:
|
|
