| Brand Name : | RESKY |
| Model Number : | LP102050 |
| Certification : | CE, RoHS, MSDS, Un38.3 |
| Price : | Negotiable |
| Payment Terms : | T/T,Western Union |
| Supply Ability : | 50000pcs/day |
| Delivery Time : | 7-10days |
| MOQ : | 10PCS |

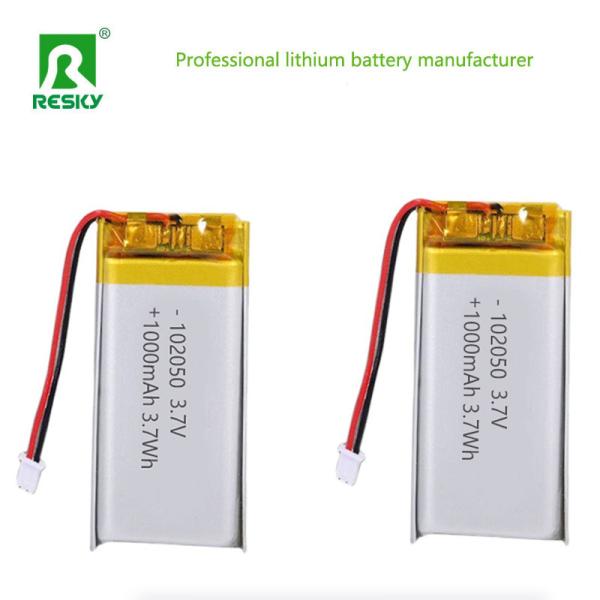

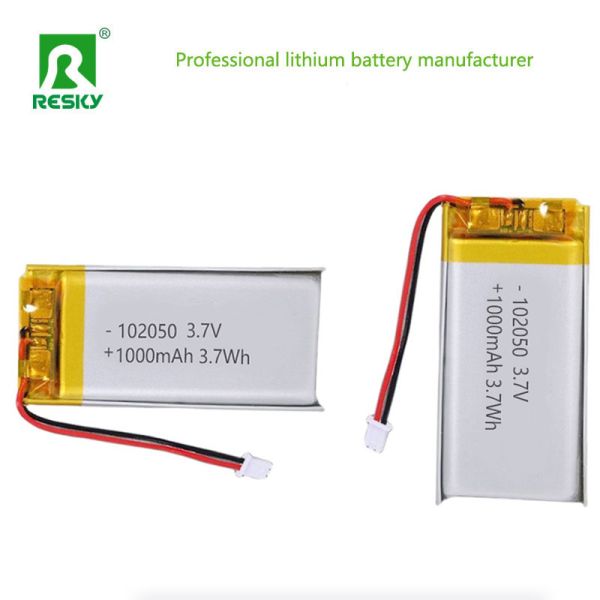

Lithium Polymer Battery 102050 3.7v 1000mAh 3.7Wh Rechargeable Lipo Battery Pack For Handheld Device
Specification:
| NO. | Items | Specifications |
|---|---|---|
| 1 | Batteries | 3.7v 1000mah lipo battery |
| 2 | Charge voltage | 4.2V |
| 3 | Nominal voltage | 3.7V |
| 4 | Nominal capacity | 1000mAh 0.2C Discharge |
| 5 | Charge current | Standard Charging:0.5C Rapid charge: 1.0C |
| 6 | Standard Charging method | 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C |
| 7 | Charging time | Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.) |
| 8 | Max.charge current | 1.0C |
| 9 | Max.discharge current | 1.0C |
| 10 | Discharge cut-off voltage | 2.5V0.25V(0.2C) |
| 11 | Operating temperature | Charging: 0°C ~45°C Discharging:0°C ~45°C |
| 12 | Storage temperature | -10°C~ +45°C |
| 13 | Dimension | Length: 50±2mm (not including tabs) Width: 20±0.5mm Thickness:10±0.2mm |
| 14 | Drop Test | The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage |
| 15 | Cycle time | ≥500times |
Main Features:
1. Ultra-Thin Compact Design, Perfect for Space-Constrained Devices
Dimensional Advantage: With a thickness of only 10mm and overall
size of 10×20×50mm, it fits seamlessly into ultra-slim or
Lightweight Property: Typical weight of 10–12g—30% lighter than
same-capacity lithium-manganese batteries (14–16g) and 15% lighter
than iron-lithium batteries of the same size. This reduces the
overall weight of portable devices.
2. Balanced Capacity & High Energy Efficiency, Meeting Daily
Battery Life Needs
Optimal Capacity for Small Devices: 1000mAh capacity (3.7Wh energy)
provides sufficient runtime for low-to-medium power devices:
Powers a mini GPS tracker for 3–5 days;
Supports a wireless microphone for 8–10 hours of continuous
recording;
Eliminates frequent recharging compared to lower-capacity models.
High Energy Density:
Stable Performance & Reliable Safety, Reducing Usage Risks
Consistent Voltage Output: Nominal voltage of 3.7V maintains stable
power supply for devices. Unlike lithium-manganese batteries.
Multi-Layer Safety Protection: Built-in protection IC (prevents
overcharge, over-discharge, short circuit, overcurrent) + soft
aluminum-plastic film packaging.
Wide Temperature Adaptability
Reusable & Fast-Charging, Lower Long-Term Cost
Long Cycle Life:
Fast-Charging Compatibility:
Flexible Adaptability to Diverse Application Scenarios
High Compatibility with Device Requirements: 3.7V nominal voltage
matches the power demand of 90% of small consumer electronics.
Adaptable to Irregular Spaces:
Applications:
Smart wearable devices: devices such as smart bracelets and all-in-one VR headsets require a balance between size and battery life.
Wireless communication devices: devices such as wireless keyboards and neck fans require lightweight and stable power supply.
Consumer electronics: small electronic products such as Bluetooth headsets and children's toys.
Medical and security: devices requiring battery power, such as smart masks and mosquito repellent lamps.
Product Pictures:
|
|
