Lithium lipo Battery 102050 3.7v 1000mAh 3.7Wh Rechargeable li-polymer Battery Pack For VR headsets
Specification:
| NO. | Items | Specifications |
|---|---|---|
| 1 | Batteries | 3.7v 1000mah lipo battery |
| 2 | Charge voltage | 4.2V |
| 3 | Nominal voltage | 3.7V |
| 4 | Nominal capacity | 1000mAh 0.2C Discharge |
| 5 | Charge current | Standard Charging:0.5C Rapid charge: 1.0C |
| 6 | Standard Charging method | 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C |
| 7 | Charging time | Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.) |
| 8 | Max.charge current | 1.0C |
| 9 | Max.discharge current | 1.0C |
| 10 | Discharge cut-off voltage | 2.5V±0.25V(0.2C) |
| 11 | Operating temperature | Charging: 0°C ~45°C Discharging:0°C ~45°C |
| 12 | Storage temperature | -10°C~ +45°C |
| 13 | Dimension | Length: 50±2mm (not including tabs) Width: 20±0.5mm Thickness:10±0.2mm |
| 14 | Drop Test | The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage |
| 15 | Cycle time | ≥500times |
Main Advantages compared with Cylindrical battery cells:
1. Ultra-Flexible Form Factor:
2. Lighter Weight: Reduces Portable Device Burden
3. Higher Space Utilization: Maximizes Capacity in Limited Volume
4. Safer Performance: Lowers "Thermal Runaway" Risks
5. Better Adaptability to Irregular Device Structures
Main Applications:
Bluetooth Headsets and Children's Toys
This battery is commonly used to power Bluetooth headsets,
providing stable power. Its lightweight design also makes it
suitable for children's toys, such as smart bracelets and
all-in-one VR headsets.
Smart Wearable Devices
As the core power source for devices like smart bracelets and
pedometers, its lightweight design is suitable for a variety of
smart wearable devices and also supports GPS positioning.
Medical and Industrial Equipment
Some models are used in medical instruments, meters, and small
medical devices, such as thermometers and blood pressure monitors,
for portable medical electronic devices.
Consumer Electronics
Including drones, model aircraft, beauty equipment, and power
tools, its high energy density and stability meet the power needs
of these devices.
Energy Storage and Backup Power
Some manufacturers use it in outdoor power systems such as solar
street lights and energy storage devices. However, such
applications require attention to the battery's cycle life and
temperature adaptability.

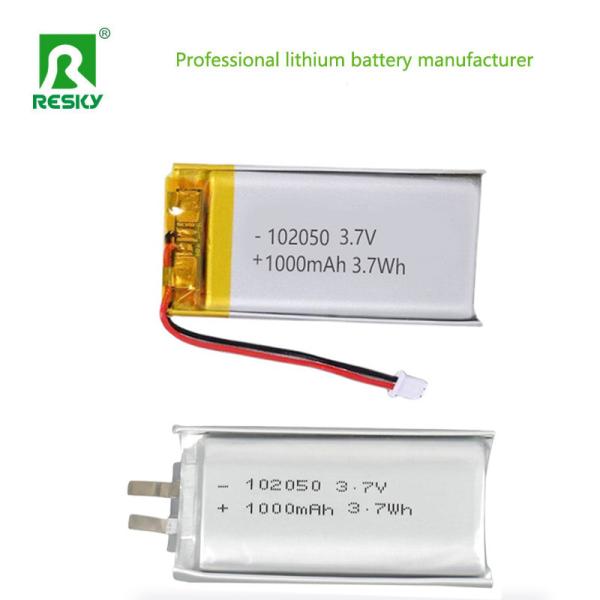

Product Pictures:
|
|
