| Brand Name : | RESKY |
| Model Number : | LP602560 |
| Certification : | CE, RoHS, MSDS, Un38.3, IEC62133,ect |
| Price : | Negotiable |
| Payment Terms : | Western Union,T/T |
| Supply Ability : | 100000PCS/Day |
| Delivery Time : | 7-10workdays |
Lifepo4 Battery Cell 602560 3.7v 4.2v 1000mAh 3.7wh Rechargeable Power Lithium Polymer Battery Pack
NO. | Items | Specifications |
1 | Batteries | 3.7V 1000mAh LiPo battery |
2 | Charge voltage | 4.2V |
3 | Nominal voltage | 3.7V |
4 | Nominal capacity | 1000mAh @ 0.2C discharge |
5 | Charge current | Standard: 0.2C |
6 | Standard charging method | 0.5C CC charge to 4.2V, then CV charge till current ≤0.05C |
7 | Charging time | Standard: 2.75 hours |
8 | Max. charge current | 0.5C |
9 | Max. discharge current | 1.0C |
10 | Discharge cut-off voltage | 2.75V±0.25V (0.2C) |
11 | Operating temperature | Charging: 0°C~45°C |
12 | Storage temperature | -10°C~+45°C |
13 | Dimension | Length: 60±0.5mm |
14 | Drop test | 1m drop onto concrete twice – no fire, no leakage |
15 | Cycle time | ≥800 cycles |
Application:
1.Small and Medium-Sized Smart Wearable and Portable Devices
Smartwatches/Bracelets:
Portable Bluetooth Speakers (Mini):
Action Cameras (Entry-Level):
IoT Gateway (Small):
Smart Door Lock (Mini):
Electronic Price Tags/Smart Shelves:
3.Healthcare and Personal Care Devices
Small medical monitors:
Handheld Beauty Devices (Mini):
Electric Toothbrush (Portable):
Handheld gaming devices (mini):
Wireless microphones (lapel):
Maker DIY projects:

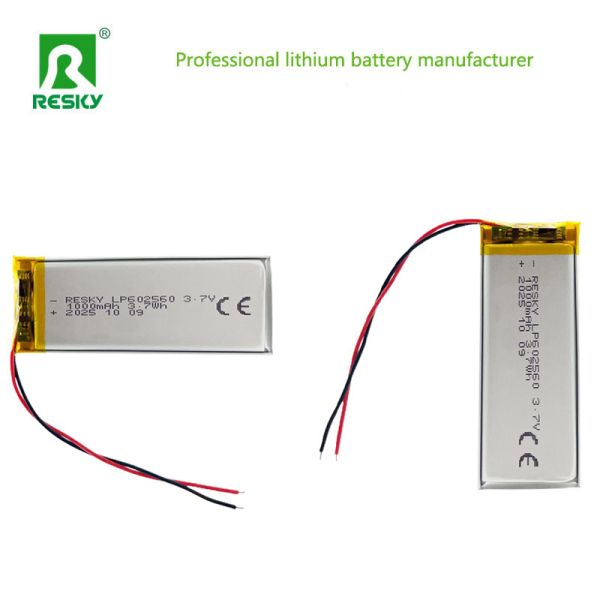

Product pictures:
|
|
