| Certification : | CE, RoHS, MSDS, Un38.3 |
| Brand Name : | RESKY |
| Model Number : | LP-303450-2S |
| Price : | Negotiable |
| Payment Terms : | T/T,Western Union |
| Supply Ability : | 50000pcs/day |
| Delivery Time : | 7-10days |
| NO. | Items | Specifications |
| 1 | batteries | 7.4v 500mah lipo battery |
| 2 | Charge voltage | 8.4V |
| 3 | Nominal voltage | 7.4V |
| 4 | Nominal capacity | 500mAh 0.2C Discharge |
| 5 | Charge current | Standard Charging:0.5C Rapid charge: 1.0C |
| 6 | Standard Charging method | 0.5C CC(constant current)charge to 8.4V, then CV(constant voltage 8.4V)charge till charge current decline to ≤0.05C |
| 7 | Charging time | Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.) |
| 8 | Max.charge current | 1.0C |
| 9 | Max.discharge current | 1.0C |
| 10 | Discharge cut-off voltage | 5V(0.2C) |
| 11 | Operating temperature | Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C |
| 12 | Storage temperature | -10°C~ +45 °C |
| 13 | Dimension | Length: 50±2mm (not including tabs) Width: 34±0.5mm Thickness:3±0.2mm |
| 14 | Drop Test | The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage |
| 15 | cycle time | ≥500times |
Advantages:
Long Cycle Life: These batteries typically have a longer lifecycle, withstanding numerous charge and discharge cycles before significant capacity degradation occurs
Versatility in Applications: The versatility of lithium polymer batteries makes them suitable for a wide range of applications, from consumer electronics like smartphones and tablets to industrial and automotive uses, including electric vehicles and drone technology.

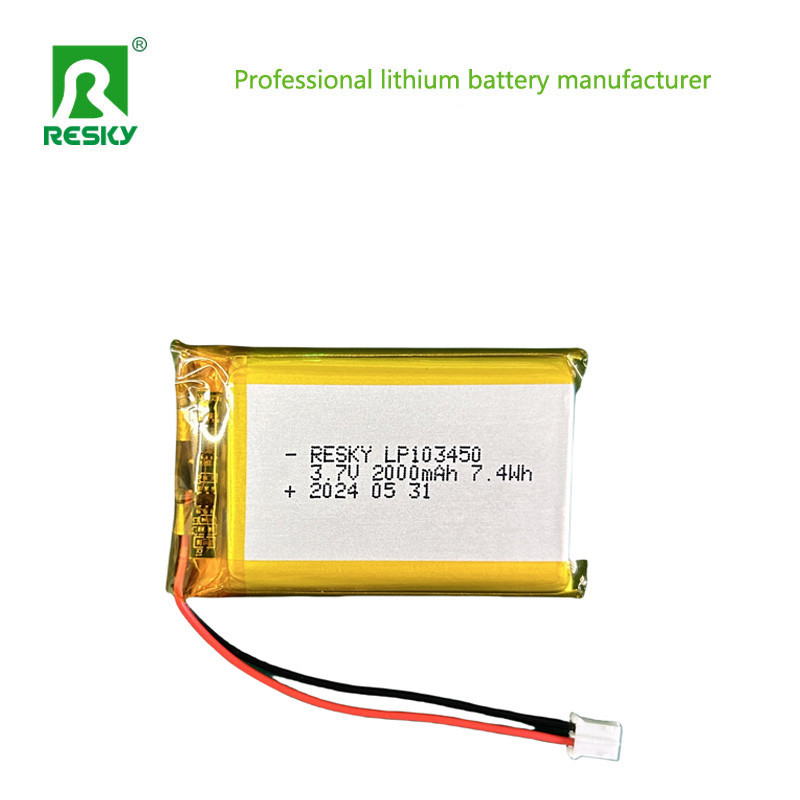

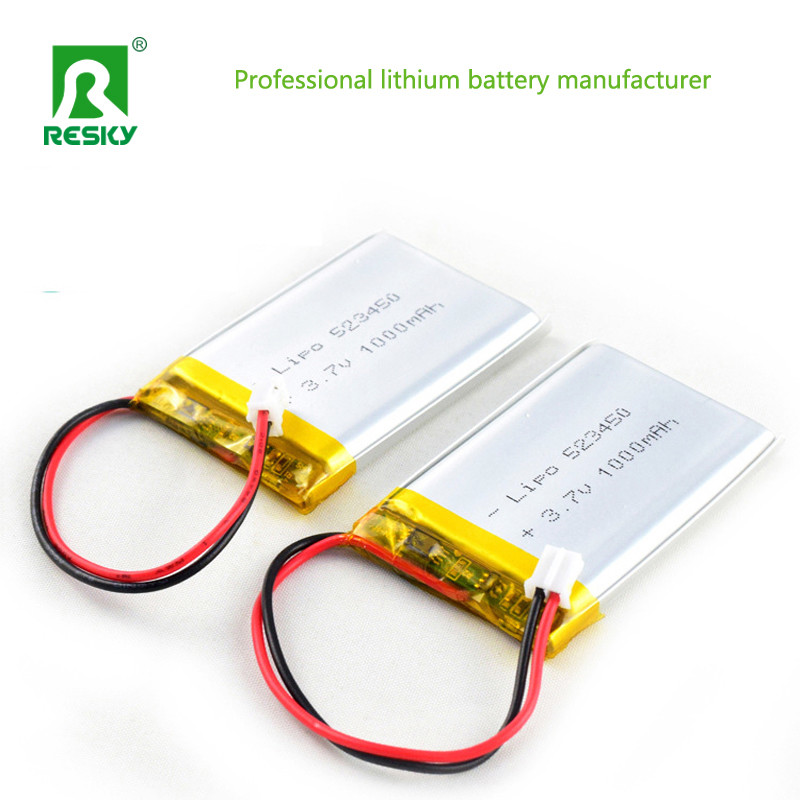

Picures:
|
|
