| Certification : | CE, RoHS, MSDS, Un38.3 |
| Brand Name : | RESKY |
| Model Number : | LP9059156SH35 |
| Price : | Negotiable |
| Payment Terms : | Western Union,T/T |
| Supply Ability : | 10000pcs/day |
| Delivery Time : | 7-10days |

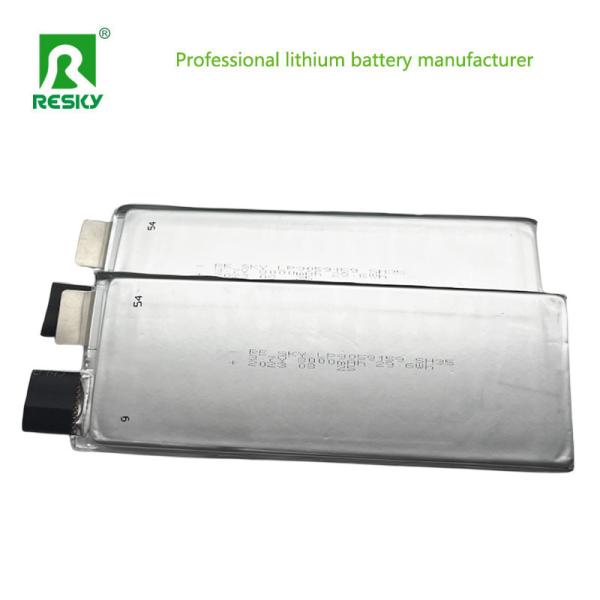

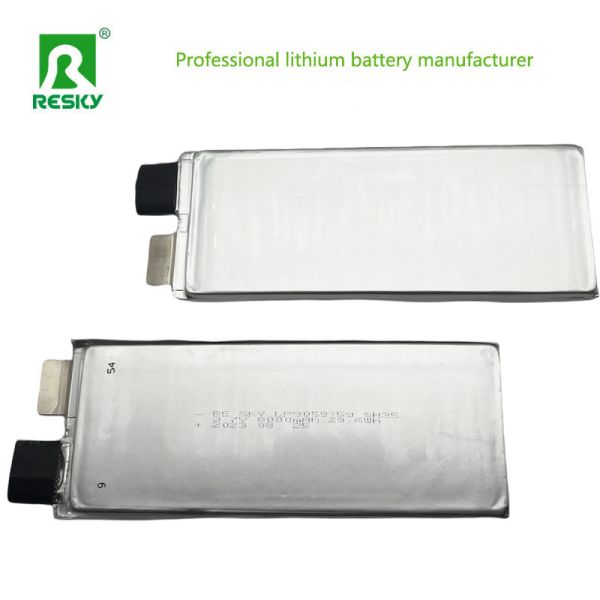

Pouch RC Lipo Battery Cell Power 8000mAh 9059156 35c For RC Car Uav Airplane
| NO. | Items | Specifications |
| 1 | batteries | 3.7V 8000mah lipo battery |
| 2 | Charge voltage | 4.2V |
| 3 | Nominal voltage | 2.75V |
| 4 | Nominal capacity | 8000mAh 35C Discharge |
| 5 | Charge current | Standard Charging:0.2C Rapid charge: 0.5C |
| 6 | Standard Charging method | 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C |
| 7 | Charging time | Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.) |
| 8 | Max.charge current | 0.5C |
| 9 | Max.discharge current | 70.0C |
| 10 | Discharge cut-off voltage | 2.75V(0.2C) |
| 11 | Operating temperature | Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C |
| 12 | Storage temperature | -10°C~ +45 °C |
| 13 | Dimension | Length:156±2mm (not including tabs) Width:59±0.5mm Thickness:9±0.2mm |
| 14 | Drop Test | The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage |
| 15 | cycle time | ≥500times |
Lithium-Polymer (LiPo): LiPo batteries are lighter than NiMH batteries with similar capacity and voltage, contributing to a more powerful feel in RC models. They also maintain their voltage better as they discharge. LiPo batteries require specific care procedures for maximum lifespan and safe use.
Represented by a 'C' rating, this indicates how quickly the battery can discharge its energy. A higher C rating means the battery can deliver more current, which is useful for high-performance RC models that require bursts of power.
Design and Construction:
Batteries come in various shapes and sizes to fit different RC vehicles. Some models have hard cases for protection, while others are soft-packed for flexibility.
The internal structure of the battery, including the arrangement of cells (series or parallel), affects its voltage, capacity, and discharge rate.
Pictures:
|
|
