| Certification : | CE, RoHS, MSDS, Un38.3 |
| Brand Name : | RESKY |
| Model Number : | LP505060 |
| Price : | Negotiable |
| Payment Terms : | Western Union,T/T |
| Supply Ability : | 50000pcs/day |
| Delivery Time : | 7-10days |
| MOQ : | 10PCS |

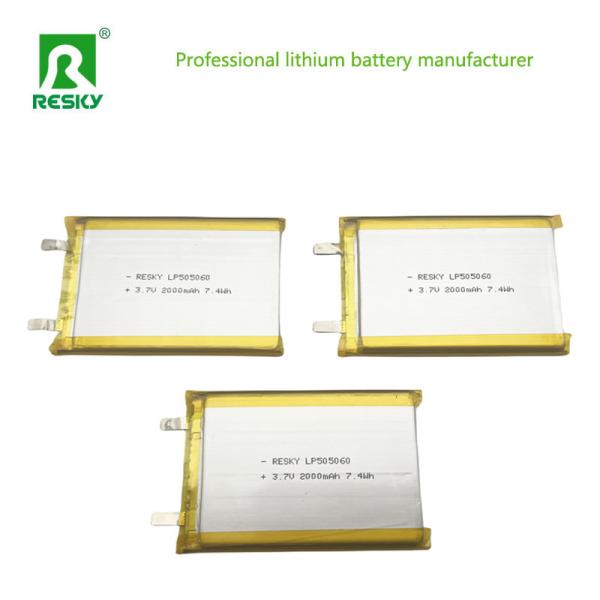

Power Lithium polymer battery cell 505060 2000mAh 7.4wh 3.7V for medical device
| NO. | Items | Specifications |
| 1 | batteries | 3.7v 2000mah lipo battery |
| 2 | Charge voltage | 4.2V |
| 3 | Nominal voltage | 3.7V |
| 4 | Nominal capacity | 2000mAh 0.2C Discharge |
| 5 | Charge current | Standard Charging:0.5C Rapid charge: 1.0C |
| 6 | Standard Charging method | 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C |
| 7 | Charging time | Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.) |
| 8 | Max.charge current | 1.0C |
| 9 | Max.discharge current | 1.0C |
| 10 | Discharge cut-off voltage | 2.5V0.25V(0.2C) |
| 11 | Operating temperature | Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C |
| 12 | Storage temperature | -10°C~ +45 °C |
| 13 | Dimension | Length:60±2mm (not including tabs) Width:50±0.5mm Thickness:5±0.2mm |
| 14 | Drop Test | The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage |
| 15 | cycle time | ≥500times |
Advantages:
Long Cycle Life: These batteries typically have a longer lifecycle, withstanding numerous charge and discharge cycles before significant capacity degradation occurs.
Low Self-Discharge Rate: Lithium polymer batteries exhibit a low self-discharge rate, meaning they retain their charge better over time when not in use. This is particularly beneficial for devices that may be stored for extended periods.
Improved Safety: Advances in technology have led to the development of safer lithium polymer batteries with enhanced protection mechanisms against overcharging, overheating, and short-circuiting. Although safety concerns still exist, modern designs have significantly mitigated these risks.
