Aims to be a premier solution provider for high quality, efficient, safe, environmental power
1 Years
| Ask Lasest Price | |
| Certification : | CE, RoHS, MSDS, Un38.3 |
| Brand Name : | RESKY |
| Model Number : | LP604070 |
| Price : | Negotiable |
| Payment Terms : | Western Union,T/T |
| Supply Ability : | 100000PCS/Day |
| Delivery Time : | 7-10days |

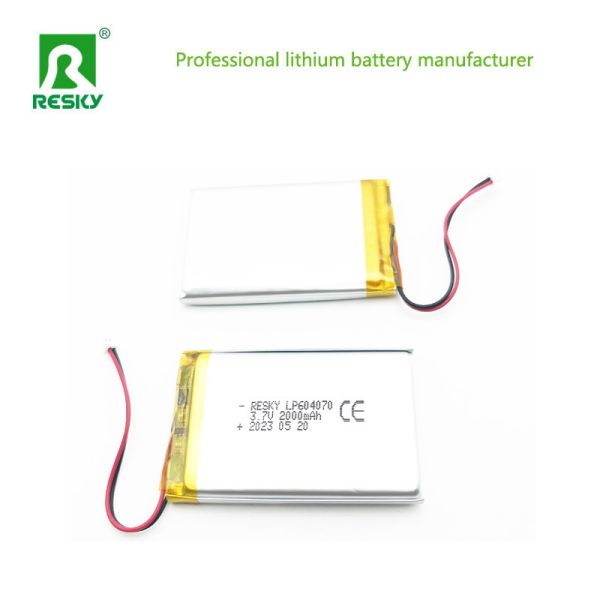

Lipo Lithium polymer battery cell 604070 2000mAh 3.7V 7.4wh for Portable Media Player
| NO. | Items | Specifications |
| 1 | batteries | 3.7v 2000mah lipo battery |
| 2 | Charge voltage | 4.2V |
| 3 | Nominal voltage | 3.7V |
| 4 | Nominal capacity | 2000mAh 0.2C Discharge |
| 5 | Charge current | Standard Charging:0.5C Rapid charge: 1.0C |
| 6 | Standard Charging method | 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C |
| 7 | Charging time | Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.) |
| 8 | Max.charge current | 1.0C |
| 9 | Max.discharge current | 1.0C |
| 10 | Discharge cut-off voltage | 2.5V0.25V(0.2C) |
| 11 | Operating temperature | Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C |
| 12 | Storage temperature | -10°C~ +45 °C |
| 13 | Dimension | Length:70±2mm (not including tabs) Width:40±0.5mm Thickness:6±0.2mm |
| 14 | Drop Test | The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage |
| 15 | cycle time | ≥500times |
Application:
LiPo batteries are often used in GPS tracking devices due to their long operational life and ability to be shaped into compact forms, which is essential for devices that need to be discreet and lightweight.
In industrial settings, LiPo batteries are used in tools and equipment that require compact, high-performance power sources. In the medical field, they are found in portable medical devices such as defibrillators and ECG machines, where reliability and long battery life are crucial.
Drones need lightweight, high-energy-density batteries to support long flight durations. LiPo batteries are ideal for this purpose, enabling drones to perform extended missions without needing frequent battery swaps.
Picures:
|
|
