Aims to be a premier solution provider for high quality, efficient, safe, environmental power
1 Years
| Ask Lasest Price | |
| Certification : | CE, RoHS, MSDS, Un38.3 |
| Brand Name : | RESKY |
| Model Number : | LP304045 |
| Price : | Negotiable |
| Payment Terms : | T/T,Western Union |
| Supply Ability : | 50000pcs/day |
| Delivery Time : | 7-10days |
| MOQ : | 10PCS |
| NO. | Items | Specifications |
| 1 | batteries | 3.7v 500mah lipo battery |
| 2 | Charge voltage | 4.2V |
| 3 | Nominal voltage | 3.7V |
| 4 | Nominal capacity | 500mAh 0.2C Discharge |
| 5 | Charge current | Standard Charging:0.5C Rapid charge: 1.0C |
| 6 | Standard Charging method | 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C |
| 7 | Charging time | Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.) |
| 8 | Max.charge current | 1.0C |
| 9 | Max.discharge current | 1.0C |
| 10 | Discharge cut-off voltage | 2.5V 0.25V(0.2C) |
| 11 | Operating temperature | Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C |
| 12 | Storage temperature | -10°C~ +45 °C |
| 13 | Dimension | Length: 45±2mm (not including tabs) Width: 40±0.5mm Thickness:3±0.2mm |
| 14 | Drop Test | The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage |
| 15 | cycle time | ≥500times |
Application:
Electric Vehicles (EVs) and Drones:
Electric Scooters and Bicycles: Li-poly batteries offer high energy density, making them ideal for powering electric transportation options.
Drones: These unmanned aerial vehicles use Li-poly batteries to support long flight durations and stable performance.
Electric Cars: While lithium-ion batteries (which can include lithium cobalt oxide, lithium nickel manganese cobalt oxide, or lithium iron phosphate chemistries) are more common in full-sized EVs, Li-poly batteries have been explored or used in some hybrid and smaller EV models due to their packaging flexibility.
Medical Devices:
Portable Health Monitors: Devices such as heart rate monitors, blood glucose meters, and portable ECG machines often incorporate Li-poly batteries for reliability and patient convenience.
Implantable Devices: In some cases, Li-poly batteries are used in implantable medical devices like pacemakers, though stringent safety and reliability standards must be met.

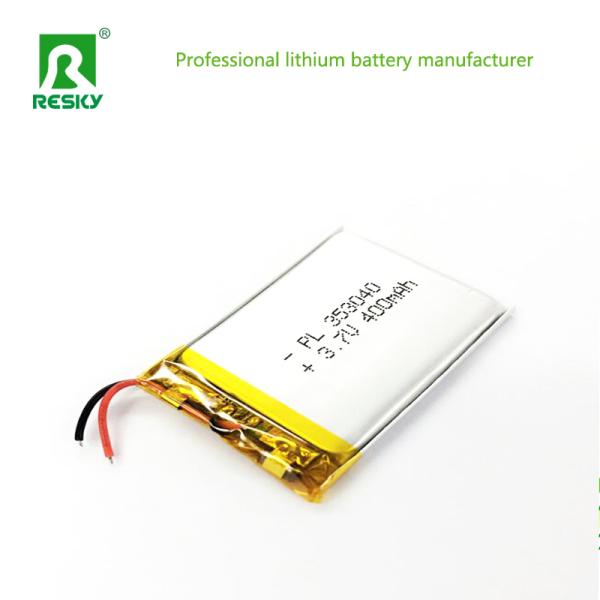

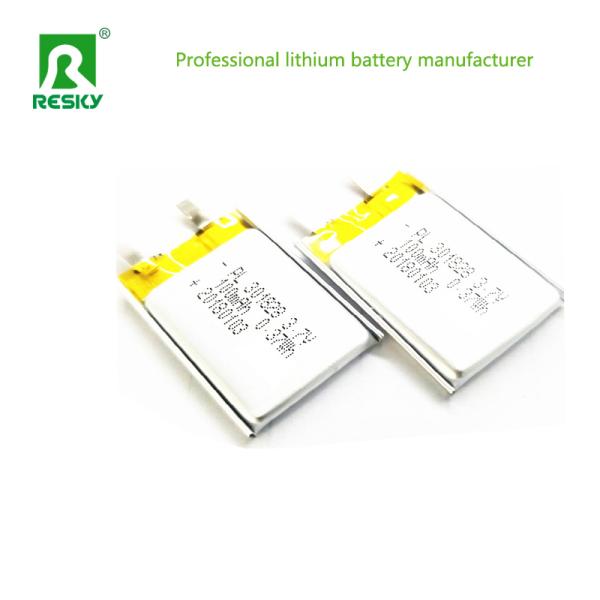

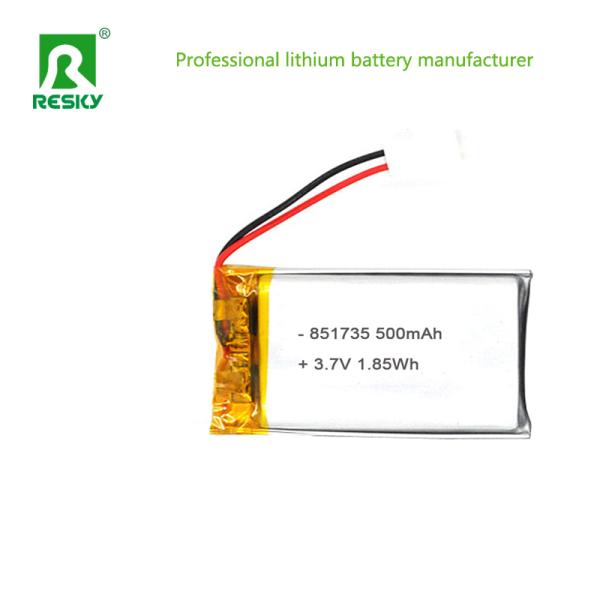

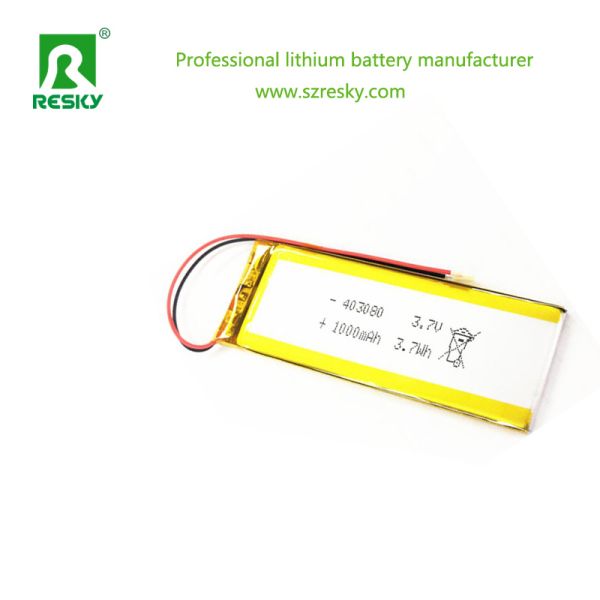

Picures:
|
|
