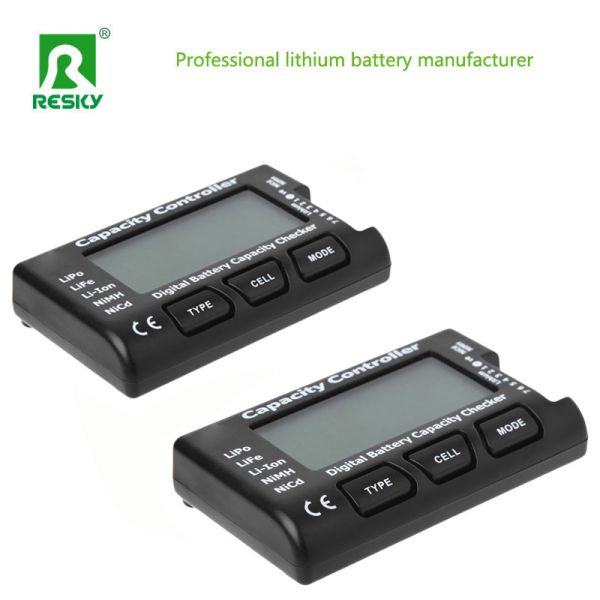

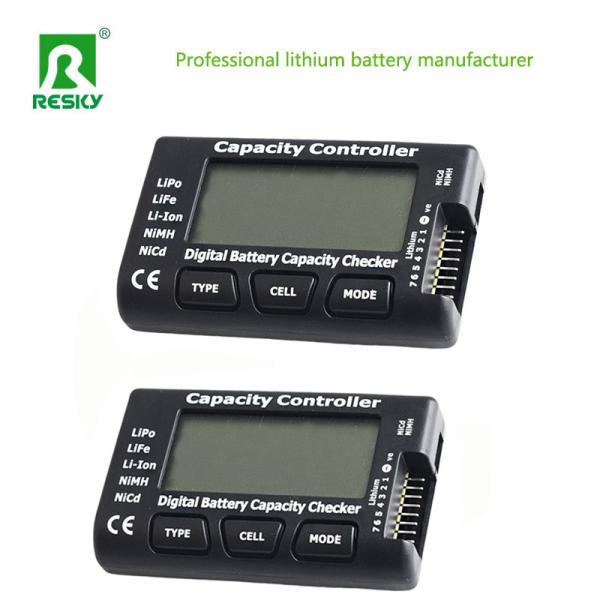

RC Accessories Cellmeter-7 Digital Battery Capacity Checker Controller Tester
Feature:| LIPO | LIFE | Li-lon | NiCd | NiMH | |
| Input cells | 2-7 cells | 2-7 cells | 2-7 cells | 4-7 cells | 4-7 cells |
| Total Voltage | √ | √ | √ | √ | √ |
| Total cell battery capacity(0-99%) | √ | √ | √ | X | X |
| Individual Battery cell voltage | √ | √ | √ | X | X |
| Lowest cell voltage | √ | √ | √ | X | X |
| Highest cell voltage | √ | √ | √ | X | X |
| Voltage Difference Between Highest and lowest cell voltages | √ | √ | √ | X | X |
Input Voltage: 10~15V DC
Battery Type & Cells: 1~12 Li-Po, Li-Ion, Li-Fe / 1~30 NiCd, NiMH / 1~6 Lead-Acid
Battery Capacity: 100mAh ~ 20,000mAh adjustable ONLY for Li-Po, Li-Ion, Li-Fe
Charge Rate: 0.1A ~ 10A Adjustable in 100mA steps (Max 180W)
Discharge Rate: 0.1A ~ 10A in 100mA steps (auto limited to 80W max)
Trickle Charge Rate: 0 ~ 500mA & Automatic Balancing Interface compatible with Fusion 6 & 12 cell balancers
Charge Termination: 'Zero Delta V' peak detection for NiCd/NiMH 'Constant current/constand voltage' for Li-Ion/Li-Po/Li-Fe & Pb
Delta Peak Sensitivity: 5mV ~ 20mV (per cell)
Package Included:
1 x LCD Battery Capacity Voltage Checker
1 x Operating Instruction
Pictures:
|
|
